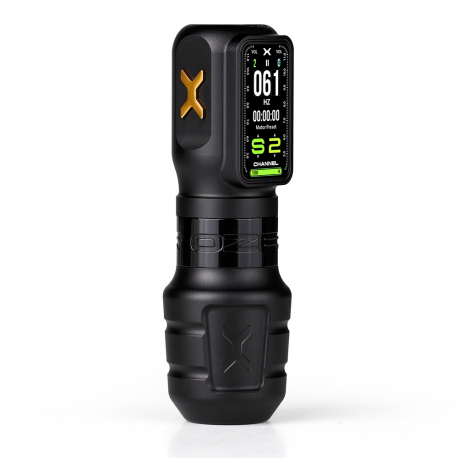

OZER – X-Channel Wireless Tattoo: a professional cordless tool for modern studios

If you are looking for a powerful tattoo device that combines technical precision with cable-free freedom, the OZER - X-Channel Wireless Tattoo tattoo machine is a solution for both demanding tattoo artists and beginners. It offers accurate control and natural hand movement for fine lines and larger compositions.

This model is ideal for full-day sessions and detail-focused styles where stable response and comfort throughout the procedure matter most.

Technical specifications

For quick reference, here are the key details:

• Motor: sensored brushless outer rotor motor (20×15 mm)
• Maximum speed: 12000 RPM at 12V
• Output voltage: 2–12 V
• Frequency range: 45–160 Hz
• Extended range in H1 mode: 36–200 Hz
• Power dissipation: 3 W
• Battery: 1800 mAh
• Battery life: approximately 5–6 hours of operation
• Display: IPS HD Display
• Display resolution: 172 × 320 PPI
• Stroke: 3.5 mm | 4.2 mm | 5.0 mm
• Needle length range: 0.8–3.5 mm / 0.8–4.2 mm / 0.8–5.0 mm
• Grip size: 40.28 mm | 38.17 mm | 33 mm
• Height: 128 mm
• Weight: 200 g / 250 g / 270 g
• Memory: stores up to 3 custom configurations
• Power: 3 power zones + 10 force levels
• Warranty: 12 months

Stability and smart control

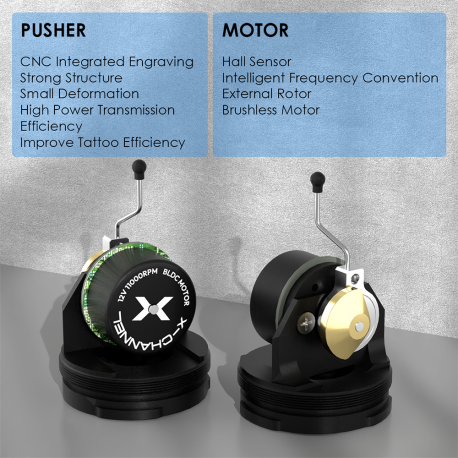

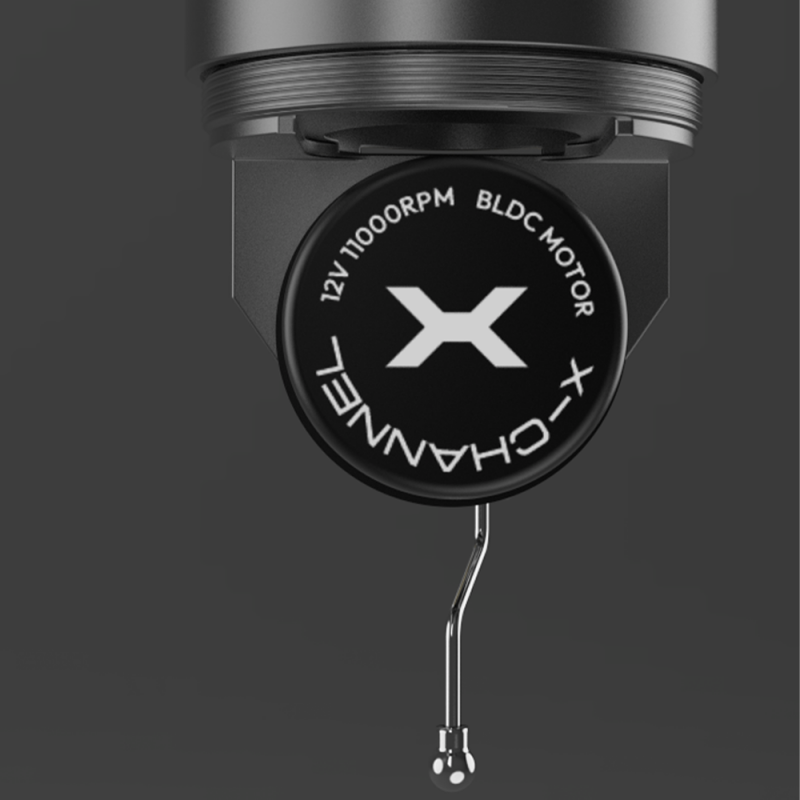

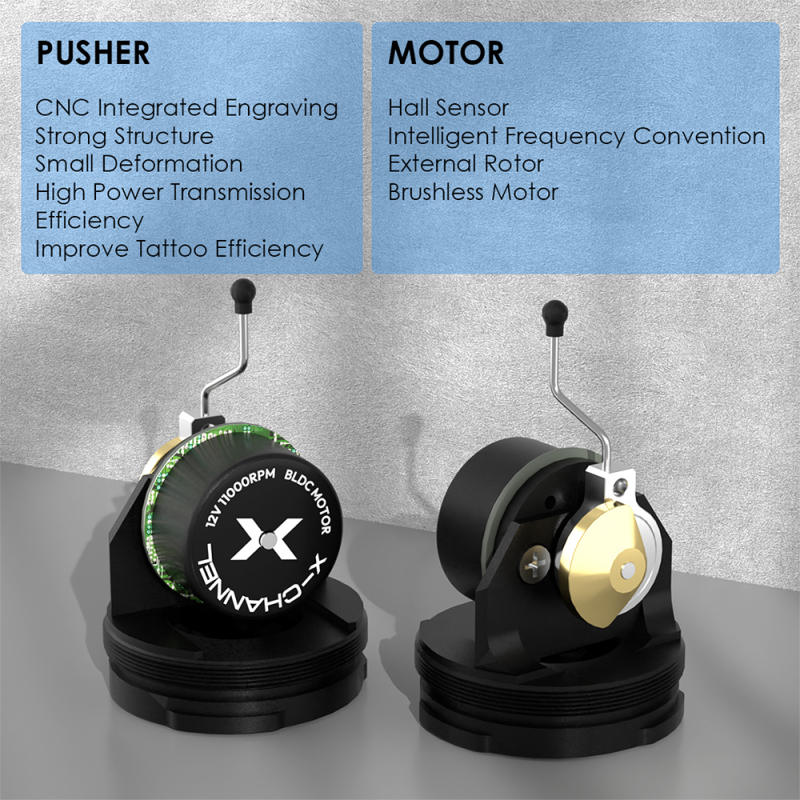

At the core is a sensored brushless outer rotor motor (20×15 mm), ensuring smooth and quiet operation without unwanted vibrations. Combined with the Voltage Follow function, the frequency remains balanced without repeated adjustments. This provides consistent dynamics across different modes.

The device offers 10 levels of force regulation, allowing performance to be tailored to your style and skin type.

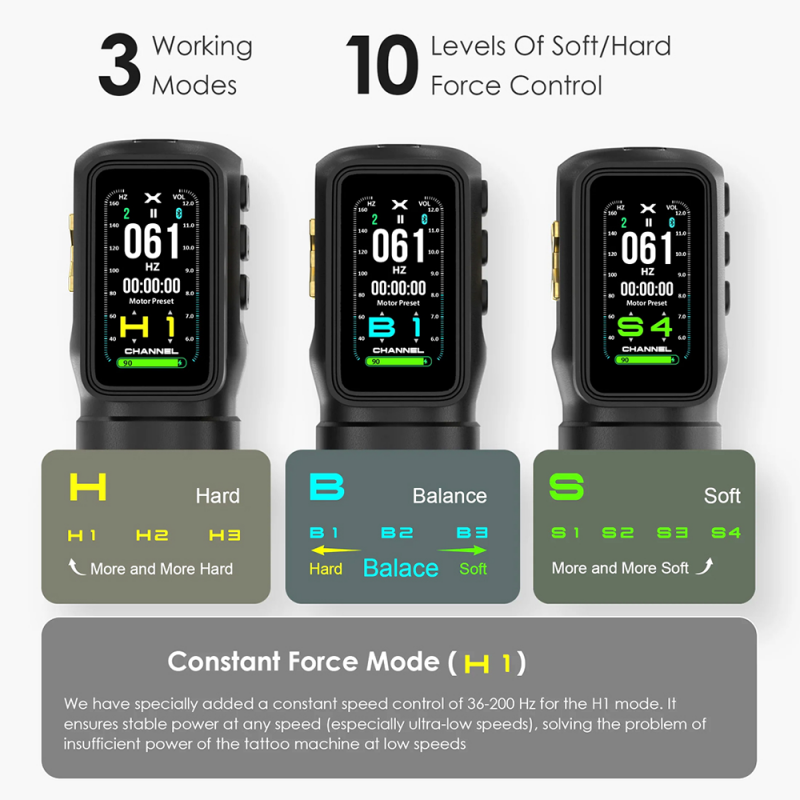

3 modes for different styles

1. Soft (S1–S4) – gentle shading and seamless transitions
2. Balance (B1–B3) – versatile setting for lines and fills
3. Hard (H1–H3) – stronger impact for solid packing and rich tones

H1 mode operates within the extended 36–200 Hz range while maintaining a stable response even at lower values.

Adjustable stroke and grip adaptation

Three fixed stroke options are available:

• 3.5 mm – suitable for fine lines and detailed work
• 4.2 mm – versatile everyday use
• 5.0 mm – ideal for longer passes and larger areas

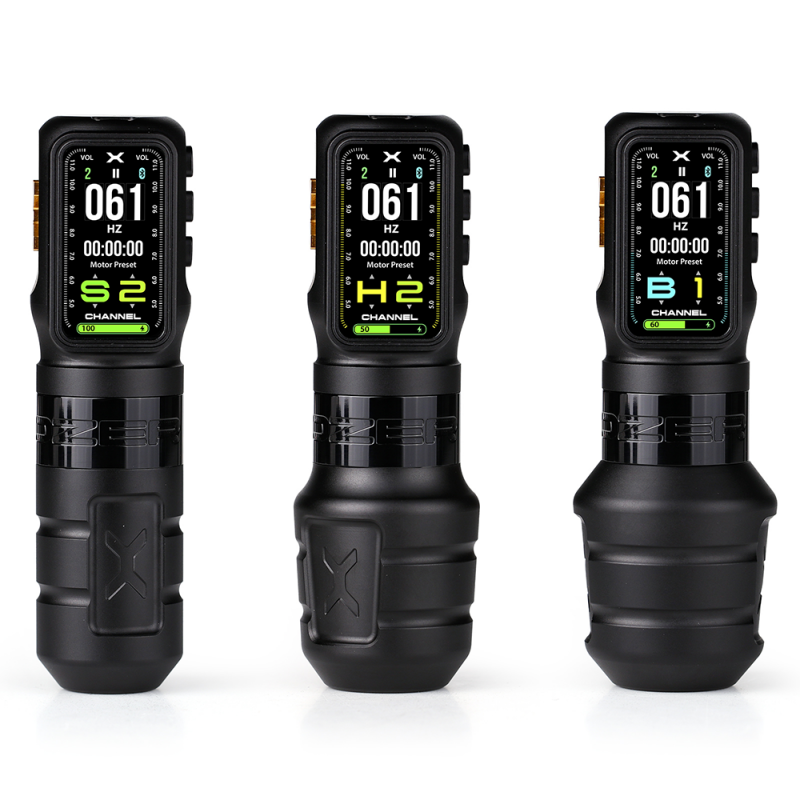

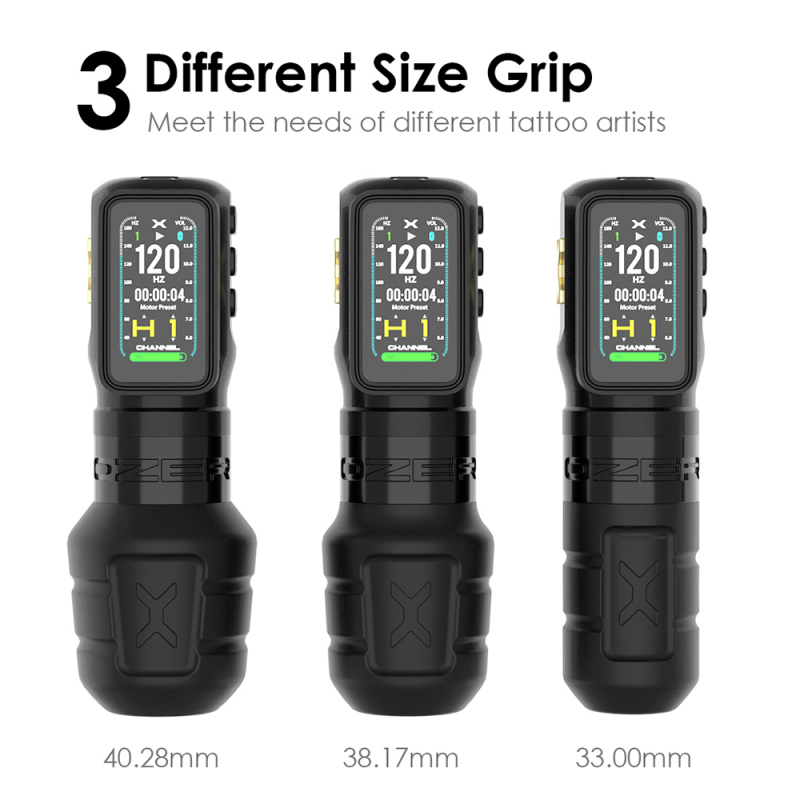

The model is also available with three grip diameters:

- 33 mm
- 38.17 mm
- 40.28 mm

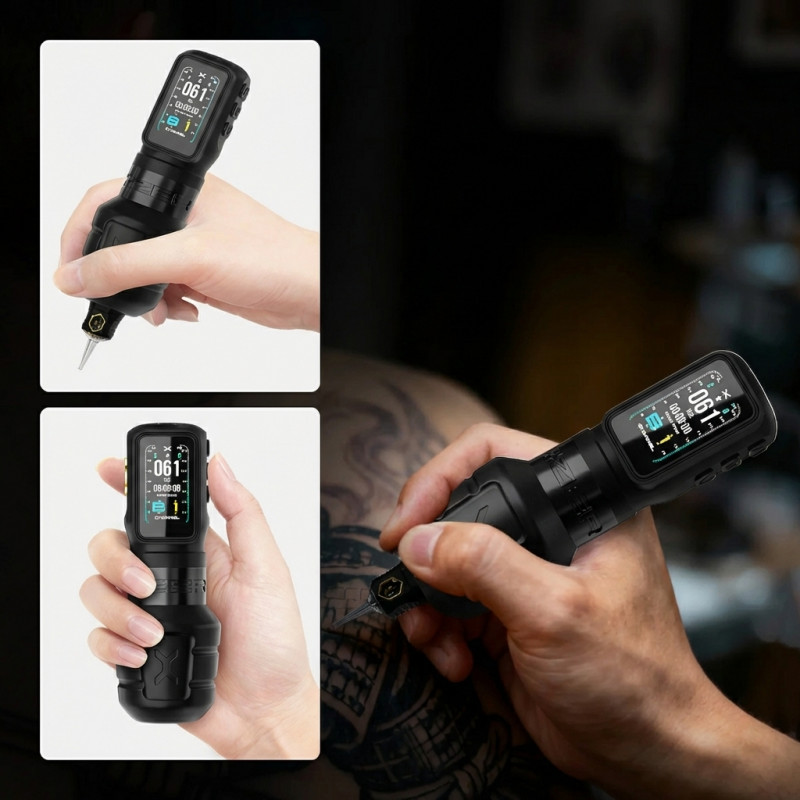

Different sizes allow you to adapt the grip to your preference and reduce hand strain during longer procedures.

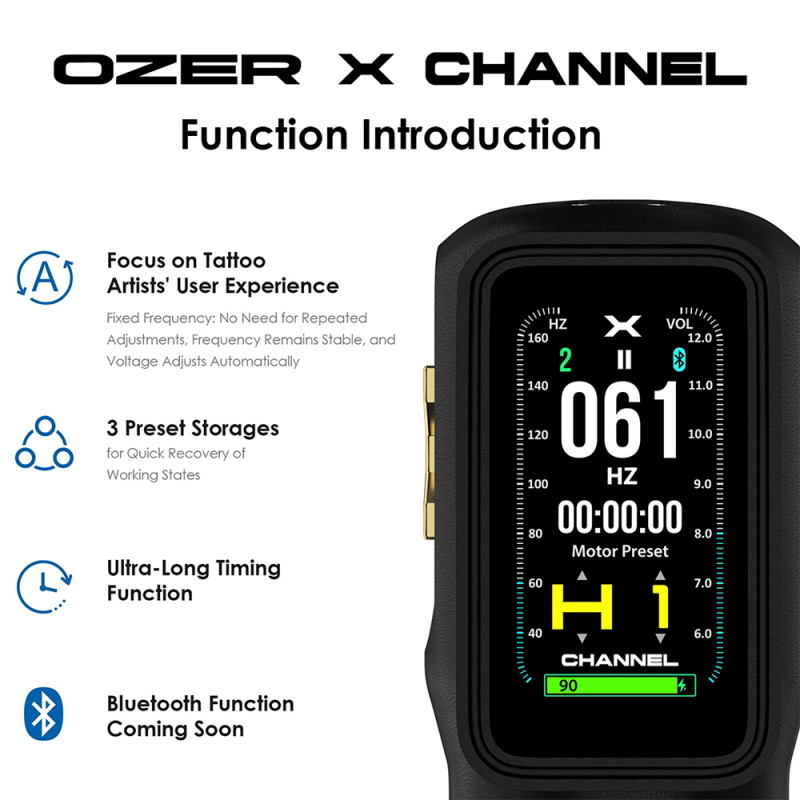

Memory and timing

The device allows you to store up to 3 custom combinations of mode and frequency, making switching between settings quick and efficient. The Ultra-Long Timing function provides an overview of session duration, which is helpful when planning more extensive projects.

Who is the OZER – X-Channel ideal for?

OZER – X-Channel Wireless Tattoo is designed for artists who want to create with confidence, comfort, and without compromise. Its ergonomic design supports longer sessions and naturally adapts to your signature style – from precise details to bold compositions.


OZER – X-CHANNEL WIRELESS TATTOO – VIDEO DEMO

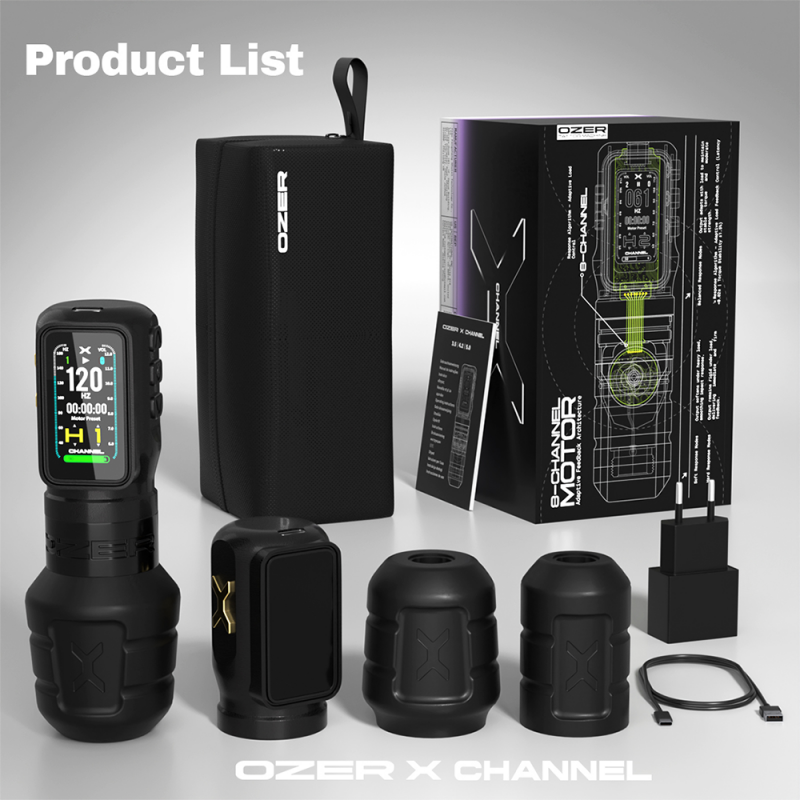

Package contents

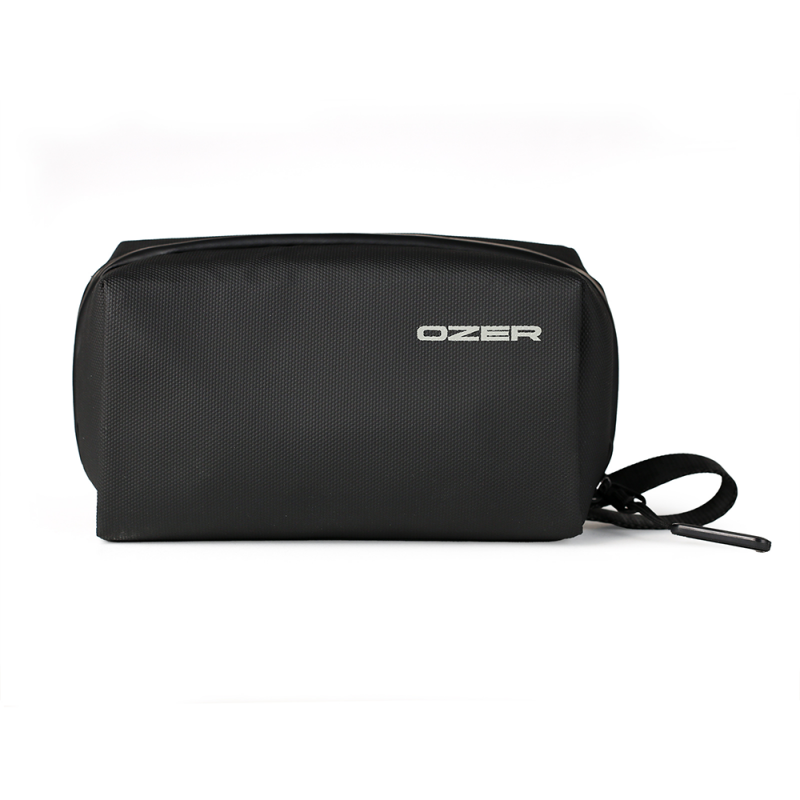

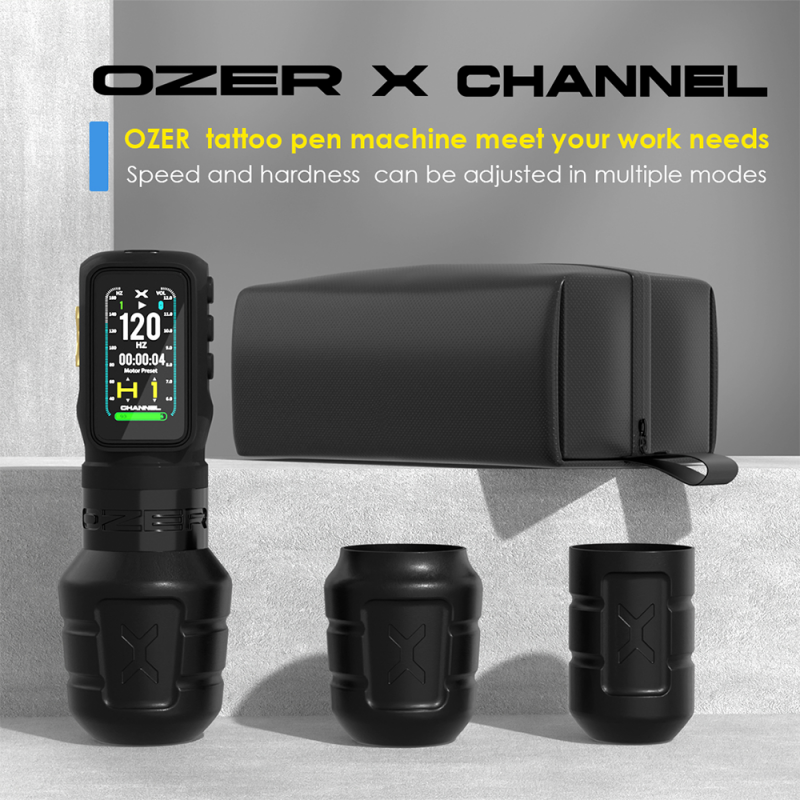

1× OZER – X-Channel Wireless Tattoo Pen, 3× grips (33 mm, 38.17 mm, 40.28 mm), 2× batteries, 1× power adapter, 1× USB-C charging cable, 1× fabric pouch, 1× user manual.

--> Choose OZER – X-Channel Wireless Tattoo and work with technology that keeps up with your precision.
